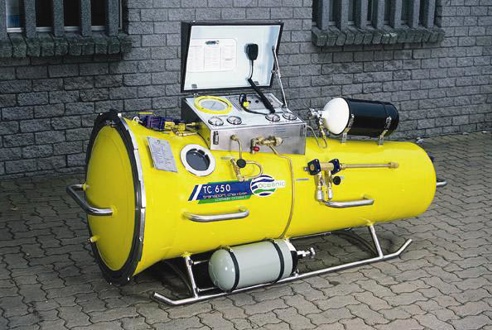

The easily mobilised, TC650 one person transport chamber provides for on-site recompression treatments and transport under pressure to larger treatment chambers.
Lightweight, the duplex stainless steel TC650 transport chamber, or hyperbaric stretcher, is designed to support detached military diving operations.
With a diver under pressure, it may be hand-carried by 6 or 8 people and is easily transported by boat, helicopter, small fixed-wing aircraft or light pick-up truck.
An optional nonmagnetic version, the TC650 – MCM transport chamber, is also available for use aboard mine countermeasure vessels.
Further Information
| Item | Order Code |
| TC650 transport chamber | TC650 |
| Design code | ASME VIII Div. 1 and ASME PVHO-1 |
| Certification authority | Lloyd's Register |
| Maximum depth rating | 60 MSW |
| Material of construction | Duplex stainless steel |
| Volume | 470 litres |
| View port diameter | 120mm |
| Overall length | 2,225mm |
| Overall height | 975mm |
| Overall width | 895mm |
| Inside diameter, major | 650mm |
| Inside diameter, minor | 450mm |
| Gross weight (without onboard air and oxygen supplies) | 140kg |
| Gross weight (with onboard air and oxygen supplies) | 195kg |
| Document | Document Type |
| TC650 transport chamber | Datasheet |
