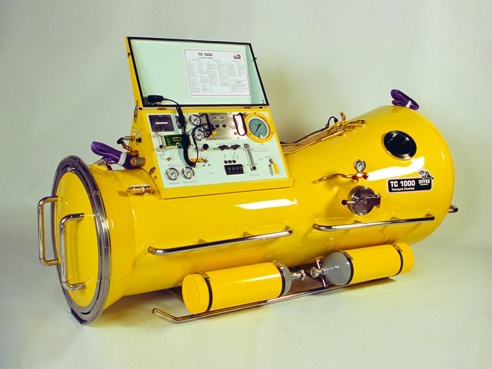

The lightweight, fully transportable, two-man TC1000 transport chamber provides for on-site recompression treatments and transport of divers under pressure.
The two-man, stainless steel TC1000 transport chamber provides easily mobilised on-site recompression treatments and transport of divers under pressure to larger treatment chambers.
With two occupants under pressure, it may be hand-carried by ten or twelve people and is easily transported by helicopter, small fixed-wing aircraft or light pick-up truck. An optional non-magnetic version, the TC1000 - MCM transport chamber, is also available for use aboard mine countermeasure vessels.
Further Information
| Item | Order Code |
| TC1000 transport chamber | TC1000 |
| Design code | ASME VIII Div. 1 and ASME PVHO-1 |
| Certification authority | Lloyd's Register |
| Maximum depth rating | 60 MSW |
| Material of construction | Duplex stainless steel |
| Volume | 1100 litres |
| Inside diameter | 665mm min; 1000mm max |
| View port diameter | 150mm I.D. |
| Overall length | 690mm |
| Overall height | 1135mm |
| Overall width | 1210mm |
| Gross weight (without onboard air and oxygen supplies) | 220kg |
| Gross weight (with onboard air and oxygen supplies) | 285kg |
| Document | Document Type |
| TC1000 transport chamber | Datasheet |
